Ｈeat resistance
Typical products ： AS-300213、AS-3711
High Tg、excellent heat and chemical resistance、high stiffness one-component heat-curing epoxy adhesives.
| AS-3002 series | 25℃ pot life 30 days |
|---|---|

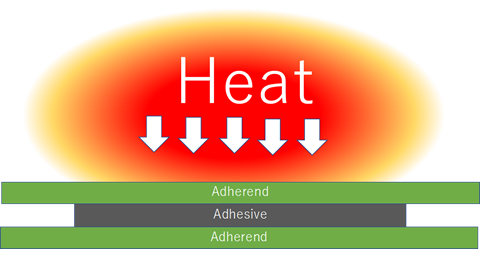

| AS-3700 series | Short time curing by partial heating equipment is possible. |
| Product | AS-300213 | AS-3711 |
|---|---|---|
| Feature | Excellent adhesion to Nylon | Fast curing |
| Viscosity | 15,000mPa・s | 15,000mPa・s |
| Curing condition | 80℃×60min 100℃×30min | 120℃×10min 150℃×1min |
| Tg | 104℃ | 145℃ |
| CTE | 72 / 207 ppm | 75 / 220 ppm |
| Modulus | 2.8 GPa | 2.9 GPa |
| Tensile shear strength | 12 MPa | 15 MPa |
| Application example | Camera module ： board /frame | Piezoelectric device ： Piezo adhesion |
